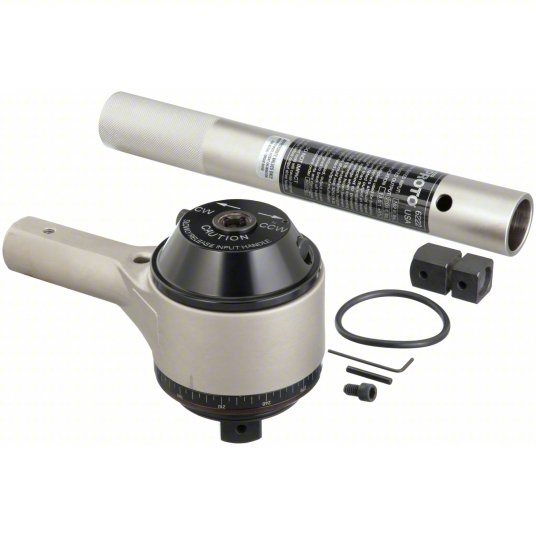

Proto® Torque Multiplier 1200 ft-lbs

Additional information

Weight	6.05998912 kg
Dimensions	16.100 × 12.800 × 5.200 in

Product Attribute	Details
Catalog Page	767
Brand	PROTO
Max. Rated Input	200 ft-lb
Max. Rated Output	1,200 ft-lb
Female Input Square Drive	1/2 in
Male Output Square Drive	3/4 in
Torque Ratio	1:6
Torque Measurement Type	Foot-Pound
Mountable	No
Accuracy	+/- 5%
Measurement Type	SAE
Insulated	No
Nonsparking	No
Overload Protection	Yes
Calibration Certificate Included	No
Antibacklash Device	3 Position Self Contained
Material	Bi-Material
Finish	Chrome
Color	Black
Gear Ratio	1:6
Gear System	Single Stage Planetary
Overall Height	4 in
Overall Length	19-19/32 in
Overall Width	3-15/16 in
Handle Length	14-1/8 in
Head Thickness	4 in
Angle of Turn Protractor	5 Degrees Increments
Includes	Male Plug
Reaction System	Tubular Reaction Bar
Weight	9.1 lb
Head Diameter	3-15/16 in
UNSPSC	27111715
